  A2350  (EIA 2U)   Professional  Power Amplifier

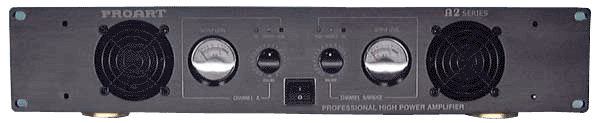

Panel @
@

@

@

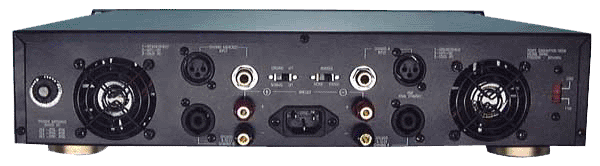

  Rear Panel @
@

@
Features: Specifications: @
@
  • Power Switch.
  • Signal Input Indicator.
  • Peak LED Indicator.
  • L&R Volume Control.
  • Protect LED Indicator.
  • RCA & 1/4" TRX Jack Line Input.
  • XLR Balance Input &Bridge Switch.
  • Speaker Jacks .
  • AC Outlet.
  • IEC Power Input.
  • Power Output (At 8 Ohms T.H.D < 1%):350W(Stereo).
  • Power Output (At 4 Ohms T.H.D < 1%):500W (Stereo).
  • Power Output (At 8 Ohms T.H.D < 1%):800W (Mono).
  • Distortion: < 0.002%
  • S/N Ratio (IEC-A): > 90db .
  • Frequency Response (+/- 1db) : 10-50KHz.
  • Dimensions: 483*88*380m(W*H*D).
  • Weight: 18 Kgs (Net).
@
@
