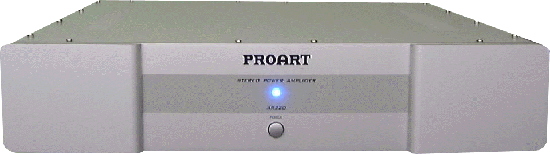

    AR220    HI   END    Amplifier



@

@



@

  Features:    Specifications:     @
@
  • RCA  Unbalance Input.
  • X.L.R    Balanced  Input.
  • 5 Way Speaker Jack.
  • Mono/Bridged  Switch.
  • Speaker Output.
  • AC  115V/230V Select.

@

  • Output  Power :>150W At 8 Ohms  (Stereo).
  • Output  Power :>250W At 4 Ohms  (Stereo).
  • Output  Power :>300W At 8 Ohms  (Mono/Bridged).
  • Distortion: < 0.005%
  • S/N Ratio (IEC-A): > 110db .
  • Frequency Response (+/- 1db) : 10-20KHz.
  • Dimensions: 435*88*380m(W*H*D).
  • Weight: 17 Kgs (Net).
@
@
