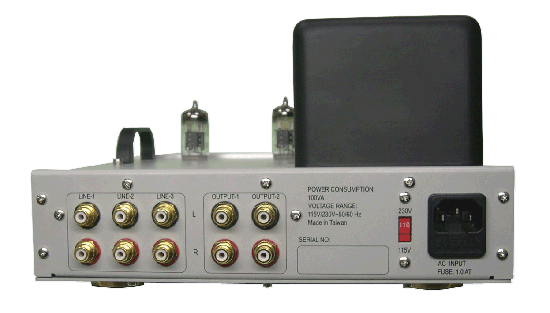

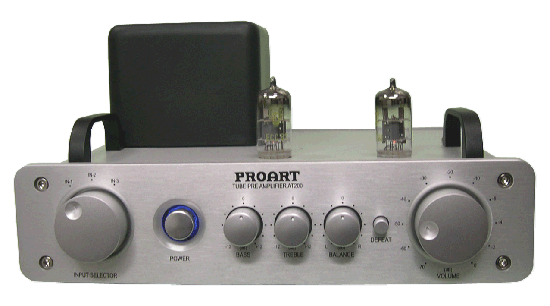

             AT200     Tube   Pre Amplifier







@

@
  Features:    Specifications: @
@
  •  3 Input/ 2 Output.
  • Output Level  >10V.
  • 12AX7*2.
  • Volume Control.
  • Defeat Control.
  • Bass Treble Balance Control.
  • RCA Input.

@

  • Output  Power :>10V   (Stereo).
  • Distortion: < 0.05%
  • S/N Ratio (IEC-A): > 70db .
  • Frequency Response (+/- 1db) : 10-20KHz.
  • Dimensions: 280*132*300m(W*H*D).
  • Weight: 8 Kgs (Net).
@
@
