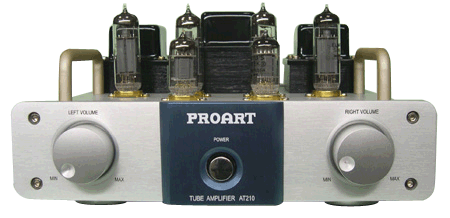

          AT210     Tube    Amplifier



@
  Features:    Specifications: @
@
  • Power Output 20W*2.
  • 6BQ5. 12AX7..
  • Volume Control.
  • RCA Input.
  • 5 Way Speaker Jack.

@

  • Output  Power :>20W At 8 Ohms  (Stereo).
  • Distortion: < 0.05%
  • S/N Ratio (IEC-A): > 80db .
  • Frequency Response (+/- 1db) : 10-20KHz.
  • Dimensions: 280*132*300m(W*H*D).
  • Weight: 14 Kgs (Net).
@
@
