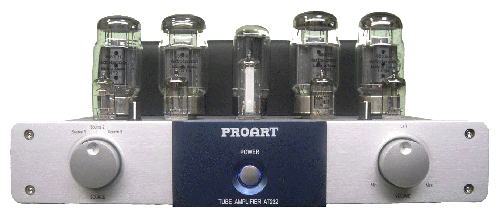

        AT232     Tube  Integrated  Amplifier  (NEW)





¡@



  Features:    Specifications: ¡@
¡@
  • Power Output 40W*2.
  • 5U4/ Rectifiers
  • 6550*4 /Power Driver
  • 12AX7*4/Signal Amp.
  • EM800*1/Level Meter.
  • Source/Volume Control.
  • 3-Source RCA Input.
  • 5 Way Speaker Jack.
  • Output  Power :>38W At 8 Ohms  (Stereo).
  • Distortion: < 0.05%
  • Gain: 25 dB
  • S/N Ratio (IEC-A): > 80db .
  • Input Impedance:470K Ohms
  • Frequency Response (+/- 1db) : 10-30KHz.
  • Dimensions: 380*66(+110)*350m(W*H*D).
  • Weight: 18 Kgs (Net).
¡@
¡@
