BC2100     DI BOX  Isolation Units

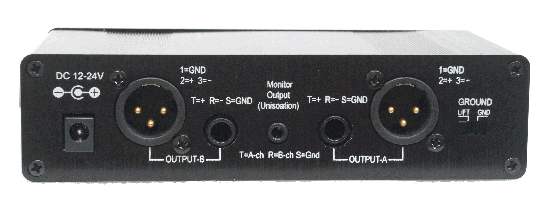

Panel                                                Rear Panel ¡@
¡@

¡@





¡@

¡@
Features: Specifications: ¡@
¡@
  • unbalance to Balance.
  • Line Isolation Units
  • X.L.R  T.R.S  Input Output.
  • 3.5 Jack Input and Output.
  • RCA Input
  • Volume Control
  • Dual and Mono Switch.
  • DC 12-24V Power Supply
  • Output  Impedance :  600 ohms.
  • Input Impedance : 20K ohms.
  • Max Input voltage: >+15dbu
  • Gain: Line: +6 db.
  • Distortion: < 0.05%
  • S/N Ratio (IEC-A): > 110db .
  • Frequency Response (+/- 1db) : 10-30KHz.
  • Dimensions: 210*40*100mm(W*H*D).
  • Weight: 0.3 Kgs (Net).

¡@

¡@
¡@
