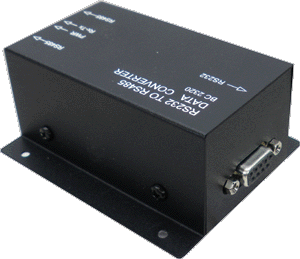

BC2320     RS232 TO 485  Data Communication

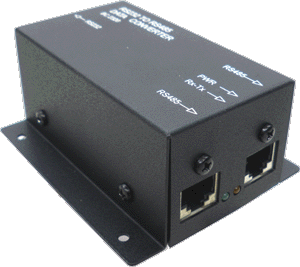

Panel                                                Rear Panel @
@

@



@

@
Features: Specifications: @
@
  • Interface Converters.
  • Opto. Isolation Products.
  • R/T & Power LED  Indicator.
  • Line Drivers.
  • Repeaters & Boosters.
  • Lighting & Surge Protectors.
  • Power Supply: DC 12V.(9-16V)
  • Rx-Tx. Speed:300 bps-115.2  Kbps
  • Data Transmitter: 1200M (RS485)
  • Data Transmitter: 5M (RS232)
  • Dimensions: 70*35*44+20mm(W*H*D).
  • Weight: 0.2Kgs (Net).

@

@
@
