       EQ1131   31  Bands Professional Equalizer

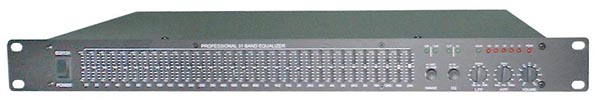

@ Panel @
@

@

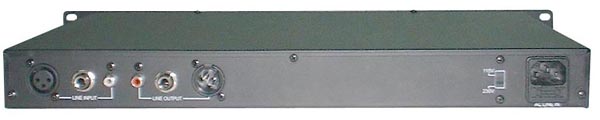

  Rear Panel @
@



@
Features: Specifications: @
@
  • 31 Bands Equalizer.
  • Volume Control.
  • Equalizer  In/Out .
  • Eq. Control  6/12 dB.
  • XLR  TRL RCA  In/Out.
  • Line Output.
  • H.P.F Function.
  • Voltage Selector 115/230V.
  • AC Cord  Power Input.
  • Center Frequencies: 20,25,31.5,40,50,63,80,100,125,
  • 160 200,250,315,400,500,630,
  • 800,1k,1.2k,1.6k,2k,2.5k,3.1k,4k,5k,
  • 6.3k,8k,10k,12.5k,16k,20k,
  • I/O Level:  In > 4V/20K.  Out > 8V/10K.
  • Distortion: < 0.005%
  • S/N Ratio (IEC-A): > 90db .
  • Frequency Response (+/- 1db) : 10-80KHz.
  • Dimensions:483*44*300mm(W*H*D).
  • Weight: 2.8 Kgs (Net).
@
@
