EQ15   10+10  Bands Spectrum Equalizer

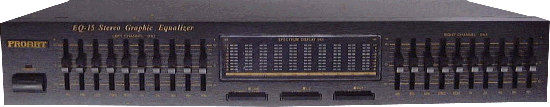

@ Panel @
@

@

@

@
  Rear Panel @
@

@
Features: Specifications: @
@
  • Power Switch & LED.
  • 10+10 Bands Equalizer   Control With LED.
  • Color LED Spectrum.
  • Line 1/2. Tape/Line.
  • Equalizer. In/Out .
  • RCA Line Input 1 & 2 .
  • Line Output
  • Tape Play Input & Rec. Output.
  • Voltage Selector 115/230V.
  • AC Outlet & AC Power Cord .
  • Center Frequencies: 30.60.125.250.500.1k.2k.4k.8k.16k Hz.
  • Output  & Input Level:  Input > 4V.  Output > 6V.
  • Distortion: < 0.005%
  • S/N Ratio (IEC-A): > 90db .
  • Frequency Response (+/- 1db) : 10-80KHz.
  • Dimensions:420*65*200m(W*H*D).
  • Weight: 2 Kgs (Net).
@
@
