EQ2500   15+15  Bands Professional Equalizer

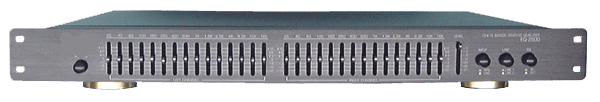

@ Panel @
@



@

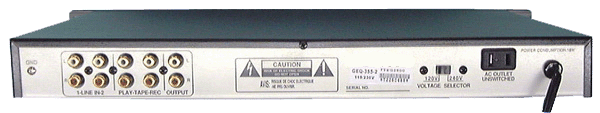

  Rear Panel @
@



@
Features: Specifications: @
@
  • 15+15 Bands Equalizer.
  • Volume Control.
  • Line 1/2 EQ In/Out .
  • Tape Monitor.
  • RCA Line Input 1/2 .
  • Line Output
  • Tape  Play & Rec.
  •  Voltage Selector 115/230V.
  • AC Cord  Power Input.
  • Center Frequencies: 25.40.63.100.160.250.400.630. 1k.1.6k.2.5k.4k.6.3k.10k.16k Hz.
  • Output  & Input Level:  Input > 4V.  Output > 8V.
  • Distortion: < 0.005%
  • S/N Ratio (IEC-A): > 85db .
  • Frequency Response (+/- 1db) : 10-80KHz.
  • Dimensions:483*44*250mm(W*H*D).
  • Weight: 2.8 Kgs (Net).
@
@
