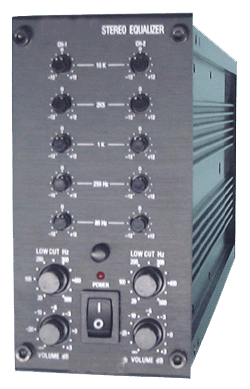

             EQ6020    Mono Block  5+5 Bands Equalizer





@
  Features:    Specifications: @
@
  • Power Switch.
  • Power LED Indicator.
  • L&R Volume Control.
  • Equalizer In/Out Switch.
  • Left & Right 5 Bands Equalizer.
  • RCA & XLR Line   Input.
  • Line Output (RCA & XLR).
  • IEC AC Outlet &  Power Input.
  • Output  Level : > 7 V(Stereo).
  • Center Frequencies: 60Hz.250Hz.1kHz.4KHz.10KHz.
  • Boost/Cut Range: > +/- 12db.
  • Distortion: < 0.002%
  • S/N Ratio (IEC-A): > 90db .
  • Maximum Input: >3V.
  • Freq. Response (+/- 1db) :10-50KHz.
  • Dimensions: 70*140*300mm(W*H*D).
  • Weight: 3Kgs (Net).
@
@
