KA300  O.S.D  Digital Karaoke  Amplifier

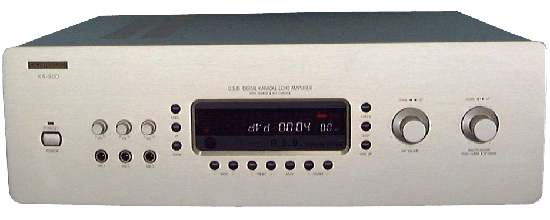

Panel @
@

@

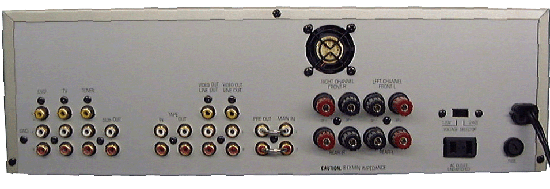

  Rear Panel @
@

@

@
Features: Specifications: @
@
  • On Screen Display Function.
  • Green Tube Display Windows.
  • 3 Mic. Bass Treble & Volume.
  • Echo Vol. Rep. Time.
  • Vocal  Utroke & Key Control.
  • Bass Treble Bal. &Vol.  Control.
  • 5 Source & RCA Line Input .
  • Tape Monitor In/Out.
  • Pre Out & Main Input.
  • Line Output &Video Input/Output.
  • Voltage Selector 115/230V.
  • Power Output (At 8 Ohms T.H.D < 1%):A=100W B=150W(Stereo).
  • Power Output (At 4 Ohms T.H.D < 1%):A=150W B=250W (Stereo).
  • Distortion: < 0.02%
  • S/N Ratio (IEC-A): > 90db .
  • Frequency Response (+/- 1db) : 10-50KHz.
  • Dimensions: 432*132*300m(W*H*D).
  • Weight: 8 Kgs (Net).

@

@
@
