PA2100 B/D     100V  Microphone  Mixer Amplifier

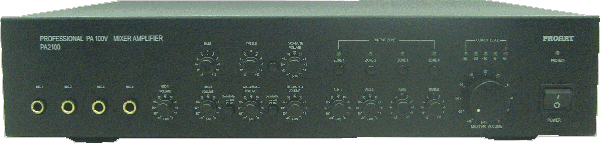

Panel @
@

@

@

@

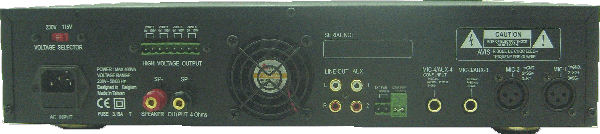

  Rear Panel @
@

@

@

@
Features: Specifications: @
@
  • Power Output Level Meter.
  • Auto Power On Control.
  • Microphone M1-M4 Volume.
  • M3/M4 Mic.-Line Selector.
  • Music/Mic. Bass Treble Control.
  • Master Volume  Control.
  •  XLR. TRX. Balanced Mic. Input .
  •  Line Output .
  • Mic. Phantom Power Switch.
  • Mic-1 Priority  Mute Function.
  • 4 Ohms/100V Output.
  • Voltage Selector 115/230V.
  • Power  Output :>PA2100D 240W  At 4Ohms  200W At 8 Ohms. (RMS)
  • Power  Output :>PA2100B 120W   At 4Ohms  100W At 8 Ohms (RMS)
  • 100V Power  Output:  PA2100B=120W   PA2100D=240W (Mono).
  • Distortion: < 0.05%
  • S/N Ratio (IEC-A): > 80db .
  • Sensitivity: Line (-20 dB)  Mic. (-72 dB)
  • Frequency Response (+/- 1db) : 20-30KHz.
  • Dimensions: 420*88*300m(W*H*D).
  • Weight: 12.8 Kgs (Net).
@
@
