      PA6000
Features:
  • Class A/B Power Amplifier

  •  0.50.70.100V Output

  • Signal Peak & Protect LED Indicator.

  • Tone  Bass Treble  Function.

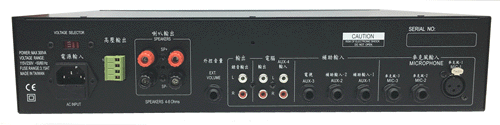

  • Aux1/2 Input  Rec. Output.  Microphone 1/2/3 T.R.S Jack.

  • X.L.R  Microphone Input
  • RCA Unbalanced Input.

  • Voltage Selector 115V/230V Switch.

  • IEC AC Outlet &  Power Input



                   150W 100V  Microphone  Mixer  Amplifier














Specifications
  • Power Output (At 8 Ohms  < 1%):

A= 80W  D=160W

  • Power Output (At 4 Ohms  < 1%):

A=120W D=240W

  • Distortion: < 0.05 %
  • S/N Ratio (IEC-A): > 90db .
  • Microphone Sensitivity: -70 dbu.
  • Aux Input Sensitivity: -40dbu
  • Maximum Input: >4V. (AUX)
  • Frequency Response (+/- 1db) :20-20KHz.
  • Dimensions: 420*88*300 mm(W*H*D).
  • Weight: 7 / 9Kgs (Net).
