PM1280       2 Channel  Microphone  Mixer

Panel @
@

@

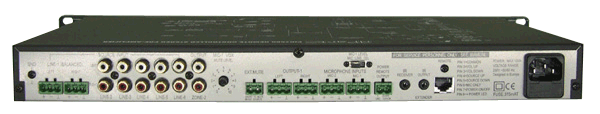

  Rear Panel @
@

@

@
Features: Specifications: @
@
  • Microphone 1/2 Tone & Volume.
  • Music Bass Treble Control.
  • Source 1-5 Control.
  • Zone 1&2 Volume Control.
  • Master Volume  Control.
  • Output Level Meter.
  • XLR  & RCA Input/Output .
  • Remote & RJ-45 Control.
  • Combo Microphone Input.
  • Voltage Selector 115/230V.
  • Output  Level :>7V RMS (Stereo).
  • Gain: Line 20 db Mic 72db.
  • Distortion: < 0.05%
  • S/N Ratio (IEC-A): > 80db .
  • Frequency Response (+/- 1db) : 10-30KHz.
  • Dimensions: 420*44*300m(W*H*D).
  • Weight: 2.8 Kgs (Net).

@

@
@
