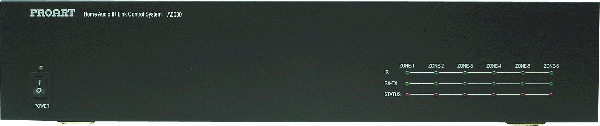

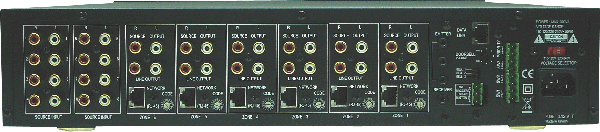

           RC235    Multi-Zone   Controller



@



@

@



@

  Features:    Specifications:    @
@
  •  6 Zone  16 Code  Setting Controller
  •  RJ-45 Connection(cat-5 wire).
  • Digital Volume  Control .
  • IR (infra red)  Emitter Output.
  • IR (infra red) input
  • 8 Source  input/Keypad Source Input.
  • All Zone Page Function.
  • Doorbell  Function.
  • Data link Up to 16 Zone.
  • AC  115V/230V Select.
  • Output  Level :>8V  At 10K/Ohms.
  • Input Level:> 2.5V At 47 K/Ohms.
  • Distortion: < 0.05%
  • S/N Ratio (IEC-A): > 90db .
  • Frequency Response (+/- 1db) : 10-40KHz.
  • Dimensions: 481*88*380m(W*H*D).
  • Weight: 3 Kgs (Net).
@
@
